Sepang Vision Lab

A 3D, broadcast-style replay of the 2026 Sepang weekend. Every practice session, qualifying and the race, rebuilt from public OpenF1 data: real names, positions, telemetry, tyres, race control and weather, with the cars driving an aligned 3D model of the circuit.

Status
Live
Role
Solo: product, data pipeline, 3D, engineering
Timeline
2026 · 29 milestones
Data
OpenF1 · 2026 Sepang weekend (2 to 4 October) · 5 sessions, 22 cars
Stack
React 19 · TypeScript · Three.js (React Three Fiber) · Vite · Python · Claude API
Live
sepangvisionlab.madebyrazeen.com

01 /Overview

Watch the race again, from any seat.

Sepang Vision Lab replays the 2026 Sepang weekend in 3D, in the browser. Pick a session, follow any of the 22 cars and switch between five cameras while a timing tower, track map, weather and race-control messages run alongside, the way a television broadcast would show them.

Everything on screen comes from recorded data. Where the data cannot say something, such as track width, brake temperature or the scenery around the circuit, the app either leaves it out or labels it as illustrative.

02 /The problem

Public data is sparse and noisy.

OpenF1 publishes car positions at about four samples a second, with jittery timestamps, in a coordinate system that matches no map. Tyre stints sometimes contradict the pit stops. Sessions have gaps.

Played back as they arrive, the cars stutter, cut corners, overlap and float above the track. The work was turning that into motion that looks physical without inventing anything the data does not contain.

03 /Gameplay

What it looks like.

The Sepang Vision Lab preview: the 3D replay, the onboard camera, sector times, the race engineer and the five cameras, all from recorded OpenF1 data.
Sepang Vision Lab race replay on the TV camera: the timing tower for all 22 cars, a safety car message, the track map and weather, Charles Leclerc on track with his speed, gear, throttle, g-meter and lap times, and the replay bar

Race, lap 11, under the safety car: the TV camera on Charles Leclerc, the 22-car timing tower, the driver card with live speed, gear, throttle and g-force, and the replay bar with incident markers.

Real product · 2026 Sepang race replay, recorded OpenF1 data
Sepang Vision Lab on a phone: session tabs, the 3D chase view, the replay bar and the followed driver's live telemetry card

On a phone: one scrolling column with the 3D view, replay controls and the followed driver's telemetry.

Real product · 2026 Sepang race replay, recorded OpenF1 data
Sepang Vision Lab chase camera behind Lando Norris through a corner on lap 9, with the rev arc, gear, g-meter and a stewards message about a Turn 9 incident

Chase camera with the driving HUD: rev arc, gear and g-meter, all from recorded channels.

Real product · 2026 Sepang race replay, recorded OpenF1 data
Sepang Vision Lab inspect camera orbiting Lewis Hamilton's car in a red and white team-style livery at 226 km/h under the safety car

Inspect camera around a team-style livery. Colours only, no logos.

Real product · 2026 Sepang race replay, recorded OpenF1 data
Sepang Vision Lab chase camera following Max Verstappen down the pit lane at 29 km/h past the garages on lap 34

The pit lane, derived from where cars actually drove during the race's 73 pit stops.

Real product · 2026 Sepang race replay, recorded OpenF1 data

04 /System architecture

Fetch once, replay in the browser.

05 / OUTPUTReact Three Fiber scene reading the replay clock every frame.

No backend at runtime. The site is static; the replay files are committed and served from Vercel.

05 /Data / intelligence

Making noisy data move like a car.

  1. Alignment

    OpenF1 positions are fitted to the circuit model with a derived similarity transform: 3.09 m RMS and 5.69 m at the 95th percentile from the centre line, a residual that includes the real racing line.

  2. Smooth motion

    Each car's distance along the track and its offset across it are refitted with a Gaussian-weighted local fit against time, so cars follow their real line and steer from its curvature.

  3. Physics check

    Sampling every car at 50 Hz across the race, 99% of frames stay within 3.7 g braking or acceleration and 5.9 g cornering, the range of a real car.

  4. Elevation

    About 22 m of climbs and drops, derived from OpenF1 heights. Cars, cameras, scenery and terrain all follow it.

  5. Cars keep their space

    Aligned positions carry a few metres of error, so overlapping cars are eased apart sideways. Overlapping frames in the race fell from 3,955 to 211, and only pairs that race control reports as colliding may touch.

  6. Honest gaps

    When OpenF1's tyre labels disagree, the tower shows ? instead of a guess. A data gap holds the last sample and marks the car stale after two seconds.

0.0 s

Gap between samples · 6,830 samples

0 ms500 ms

Median gap 240 ms, about four samples a second, and 54 gaps longer than half a second. Played as received, the car stutters.

Car 1 · Race, 4 Oct 2026 · OpenF1 · smoothing here is a 0.5 s time window for illustration; the app fits motion along the track

Real OpenF1 samples from the 2026 race, played as received and smoothed. Drag the slider or press Play.

06 /Build

Broadcast features on top.

  1. 01Five cameras

    TV, Chase, Onboard, Heli and Inspect, with a speed-sensitive lens and a driving HUD in Chase and Onboard.

  2. 02Compare and share

    Compare two drivers on the same lap with an optional ghost car, and copy a link that reopens the exact session, moment, driver and camera.

  3. 03Weather

    Rain falls while OpenF1 reports rain, then the track dries over about 90 minutes, a drying time fitted to the race's intermediate stint.

  4. 04Race engineer

    Ask about gaps, tyres, pace or flags and hear the answer as a radio call. Presets are answered from the data with no key. With the viewer's own Anthropic API key, Claude answers anything from the same data brief and is told to use only its numbers.

  5. 05Hand gestures

    Optional webcam control through MediaPipe, running locally: swipe to skip, pinch to follow the next driver. No frames leave the browser.

  6. 06Fast first load

    three.js and MediaPipe are kept out of the first download, which fell from 988 KB to under 300 KB.

07 /Outcome

Live, and checked against the source.

Sessions
5
FP1, FP2, FP3, Qualifying, Race
Cars
22
every car in every session
Alignment
3.09 m
RMS to the centre line
Tests
125
all passing

All five sessions were compared with the live OpenF1 API for laps, stints, pits, race control and classification, and the position and telemetry streams have no gap over 60 seconds.

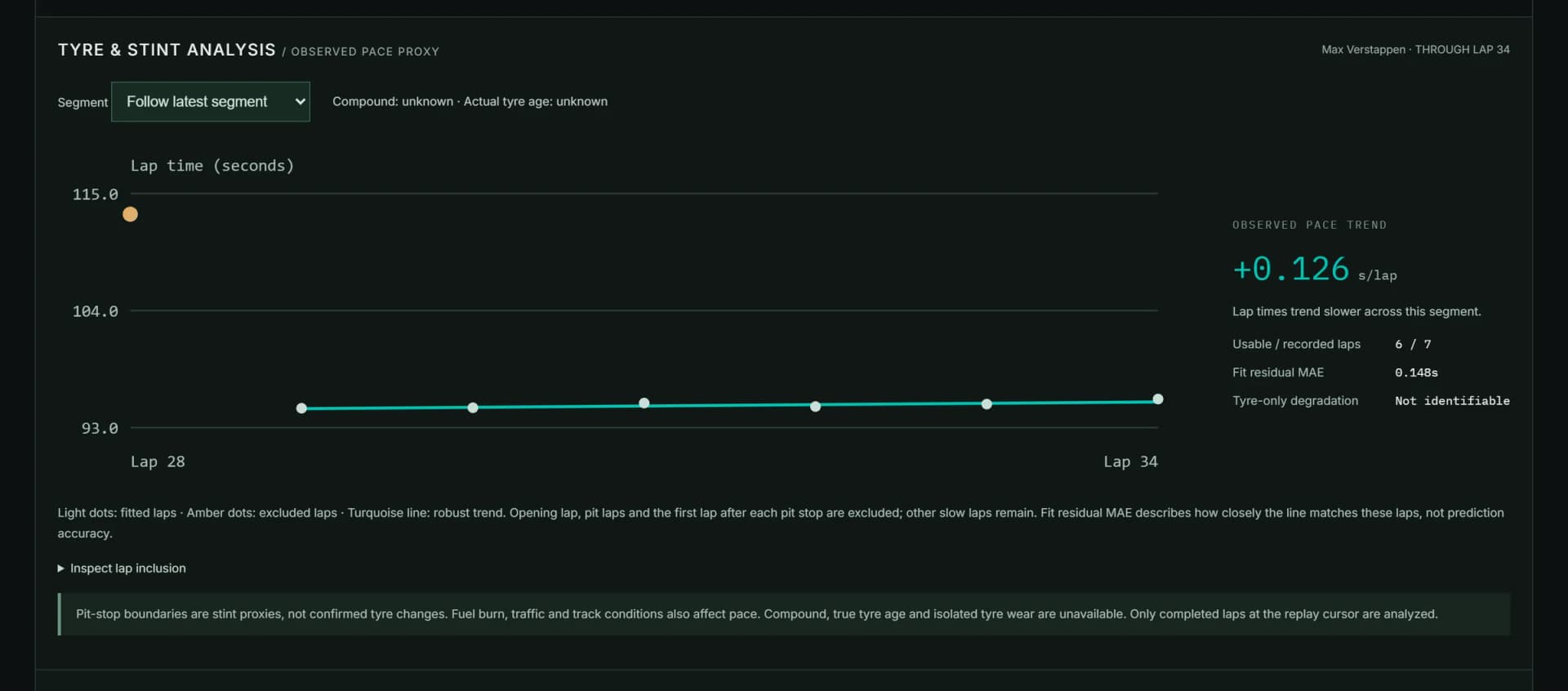

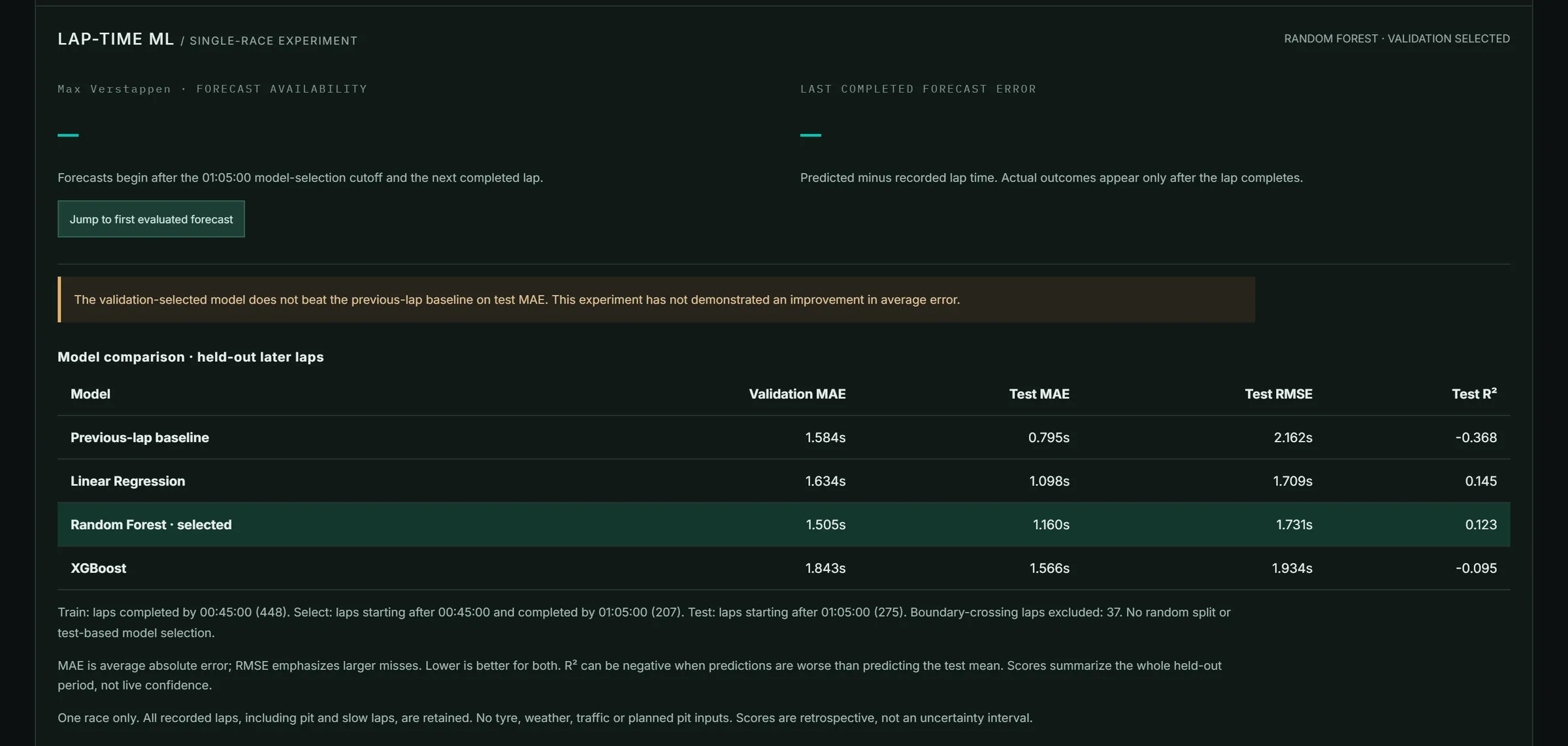

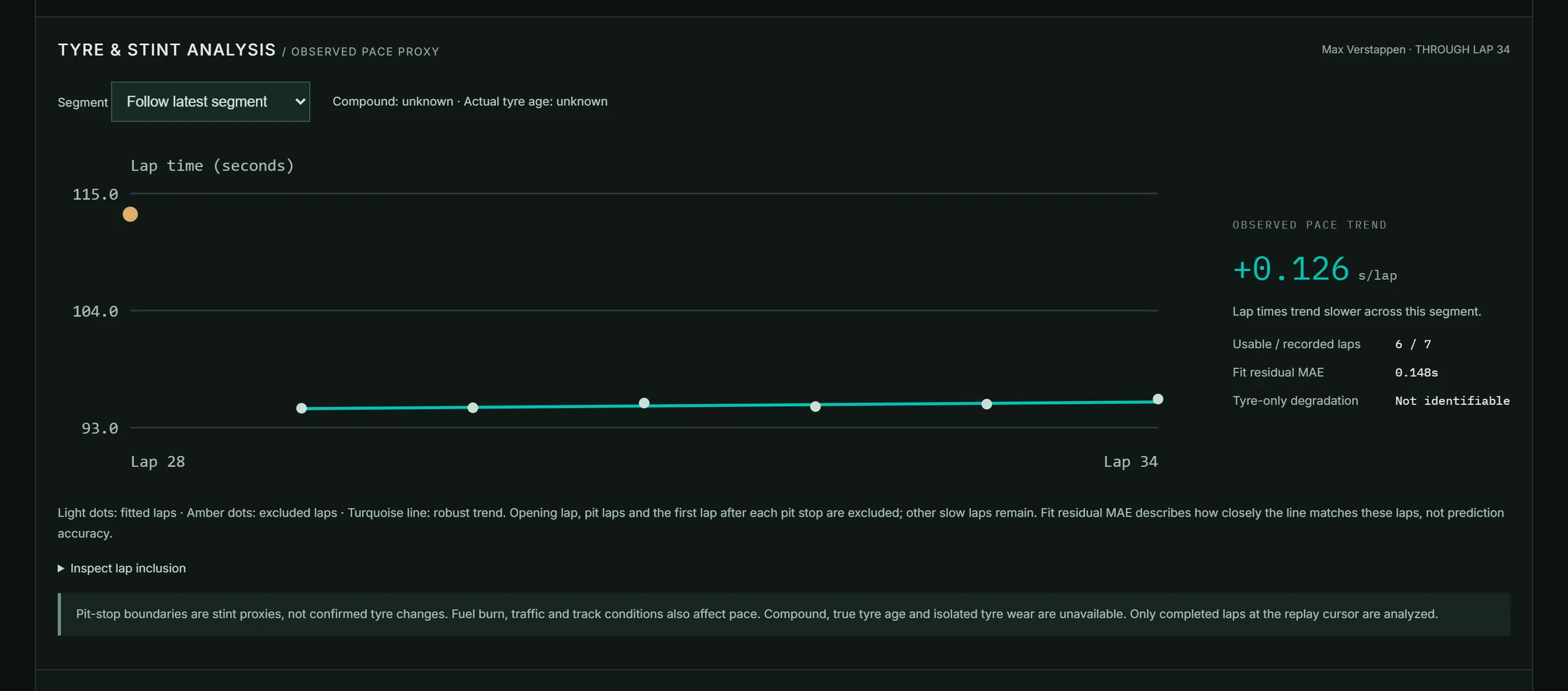

Earlier versions also carried lap-time models and strategy tools. Those were removed so the project could focus on doing one recorded weekend well.

08 /What I learned

Data first, then the polish.

  1. 01Fix the data before the visuals

    Most of what looked like rendering bugs, such as stutter, cars overlapping or floating, came from the data. Fixing it at the source fixed every view at once.

  2. 02Label every number

    DERIVED, SOURCED, OFFICIAL or illustrative: saying where each value comes from is what lets a replay be trusted.

  3. 03Cut to focus

    Removing the strategy and ML tools made the product clearer, not smaller.

  4. 04Give AI a narrow job

    The race engineer only answers from a brief of recorded data, so it explains the race without inventing it.
